EURO Series

Manually operated butt welding machines for PE and PP pipes and fittings. Machines versatile and very light , supplied with a metal frame specially studied for easy operations and transport complete with a drawer which will hold accessories when not in use. The EURO160 and EURO200 machines can be also supplied with a combined wooden transport box. The shape of the clamps let an easy welding of the short spigot bends and Tees.





WORLD Series

Workshop manually operated butt welding machines for PE and PP pipes and fittings. Very strong machines with two light weight alloy carriages (one fixed , the other one sliding). Electric mill cutter with microswitch control on the handle running over on a slide bar. Removable PTFE coated heating mirror with
special housing located on the machine, running over on a slide bar. Right and left clamps rotating up to 7,5° highly suitable for welding the short spigot fittings and big radius segemented bends construction. Machines, in frame version,  being cap sizable into the frame reduce the overall dimensions for the transport and stocking when not in use.





TE Series – Portable heating mirror

Portable butt welding PTFE coated heating mirrors for PE and PP pipes and fittings , supplied with adjustable temperature and support.
On request each mirror can be supplied with a metal box

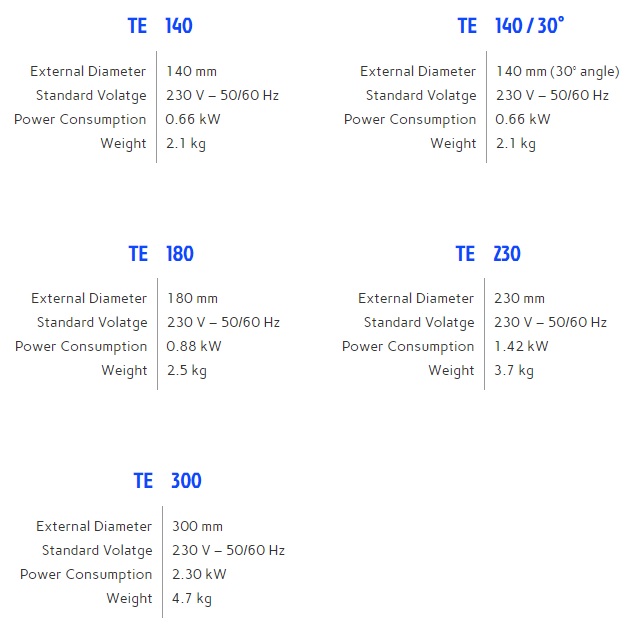

Available Models:
